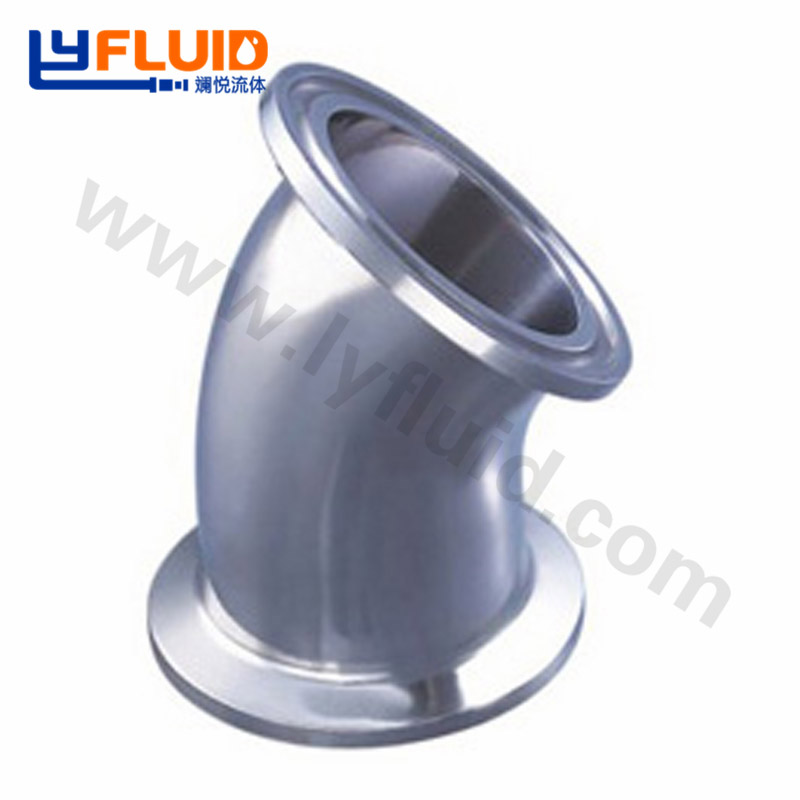

卡箍式弯头（45）
产品描述
| 卡箍式弯头(45°) | ||||
|---|---|---|---|---|
| Size | L1 | B | R | |
| 1″ | 28.6 | 50.5 | 38.1 | |
| 11/2″ | 38.5 | 50.5 | 57.2 | |
| 2″ | 44.5 | 64.0 | 76.2 | |
| 21/2″ | 52.4 | 77.5 | 95.3 | |
| 3″ | 60.3 | 91.0 | 114.3 | |
| 4″ | 79.4 | 119.0 | 152.4 | |
| Size | L1 | B | R | |
|---|---|---|---|---|
| DN20 | 34.5 | 34.0 | 40.0 | |
| DN25 | 42.2 | 50.5 | 50.0 | |
| DN32 | 44.3 | 50.5 | 55.0 | |
| DN40 | 46.3 | 50.5 | 60.0 | |
| DN50 | 50.5 | 64.0 | 70.0 | |
| DN65 | 61.2 | 91.0 | 80.0 | |
| DN80 | 66.3 | 106.0 | 90.0 | |
| DN100 | 69.5 | 119.0 | 100.0 | |
| Size | L1 | B | R | |
|---|---|---|---|---|
| φ25 | 35.4 | 50.5 | 33.5 | |
| φ32 | 37.2 | 50.5 | 38.0 | |
| φ38 | 41.6 | 50.5 | 48.5 | |
| φ51 | 48.6 | 64.0 | 60.5 | |
| φ63 | 58.1 | 77.5 | 83.5 | |
| φ76 | 58.2 | 91.0 | 88.5 | |
| φ89 | 64.4 | 106.0 | 103.5 | |
| φ102 | 74.1 | 119.0 | 127.0 | |
名称：卡箍式弯头（45）
